Johannesburg Fruit & Veg Market – 3600m2 Cold Rooms
Project at a Glance
- 14 cold rooms
- Dimensions per room: 22 m x 11 m x 4.5 m high
- Cold room insulation: 100 mm EPS insulated panels
- Refrigeration equipment: 28 x 13 HP Africhill refrigeration units
- Configuration: 2 refrigeration units per cold room
- Product pull-down capacity: Approximately 5,000 tonnes
More About This Project
Africhill successfully completed the supply, installation and commissioning of 14 large-scale cold rooms for a major cold storage development in Johannesburg.
The facility was designed to provide reliable, high-capacity temperature-controlled storage, with the refrigeration system capable of pulling down approximately 5,000 tonnes of product to the required storage temperature.
Project Scope

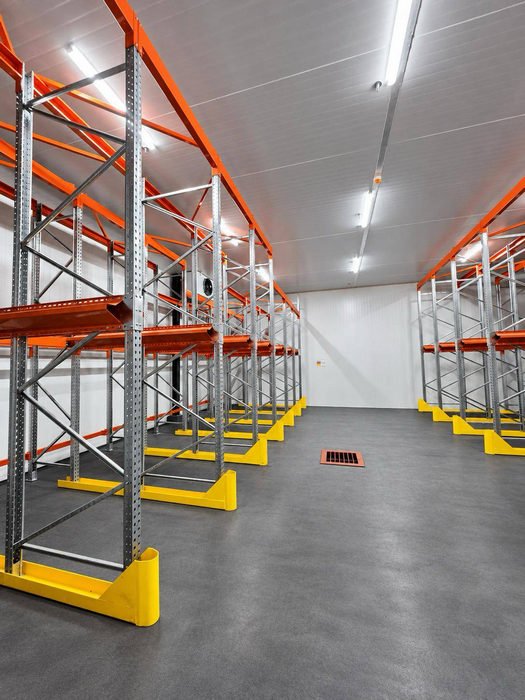

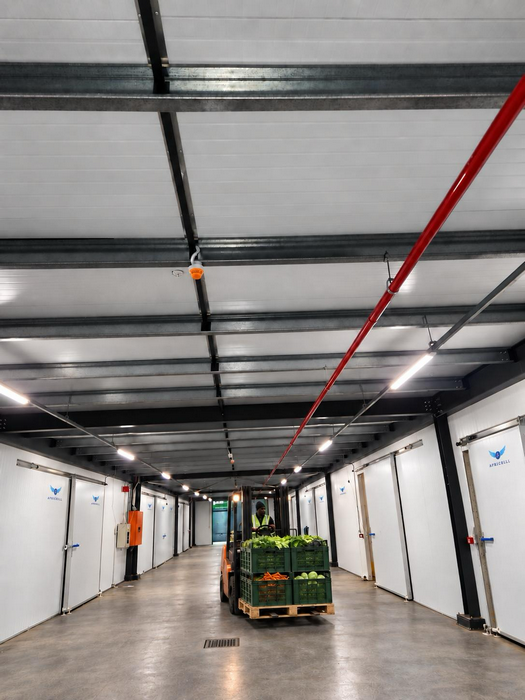

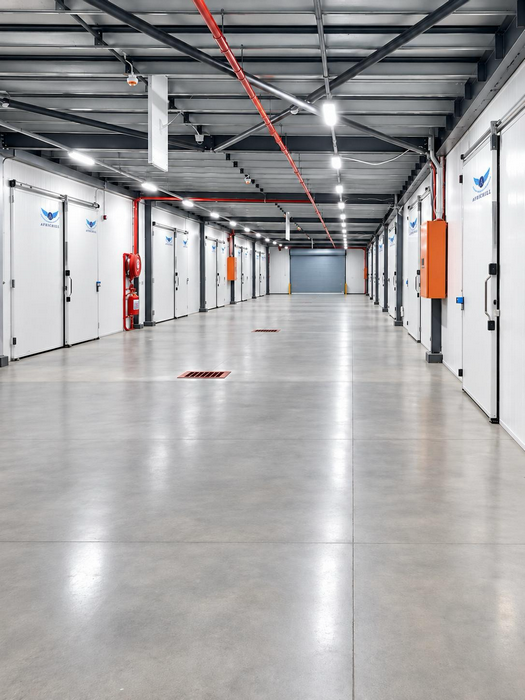

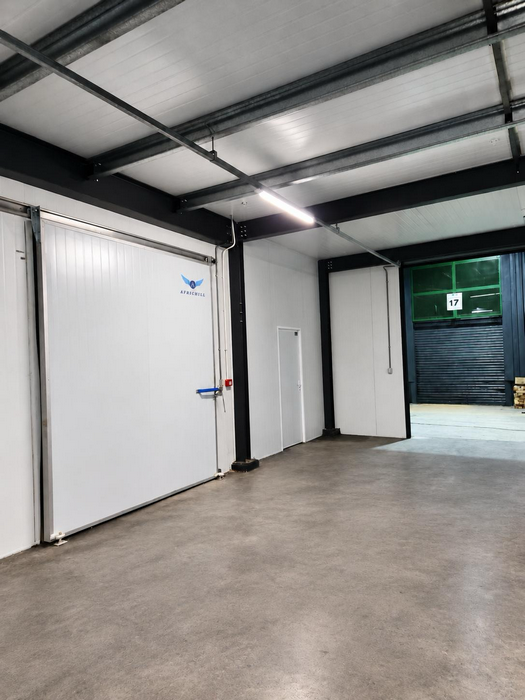

The development comprises 14 individual cold rooms, each measuring 22 m x 11 m x 4.5 m high. The cold rooms were constructed using 100 mm EPS insulated panels, providing an efficient thermal envelope for the temperature-controlled areas.
Africhill supplied and installed a total of 28 x 13 HP refrigeration units, with two dedicated refrigeration units serving each cold room. The refrigeration system was designed to provide the required cooling performance and sufficient capacity to pull down approximately 5,000 tonnes of product to the specified storage temperature.
